PASCHAL for the 3rd time at the bC India international trade exhibition

Given its long-standing presence in the Indian construction market, PASCHAL is concentrating its exhibits on the primary applications in the Indian world.
In hall 1, booth H1.D20 PASCHAL will demonstrate the practical application options, the system diversity and the compatibility of the systems and components for quick and easy use in reinforced concrete construction on a 40 m² booth. Upon request extremely well-trained formwork experts with a great deal of practical experience will show visitors to the booth the simple handling and also some of the numerous constructions and projects completed.

The following will be presented and demonstrated at bC India in Gurgaon:

Modular formwork

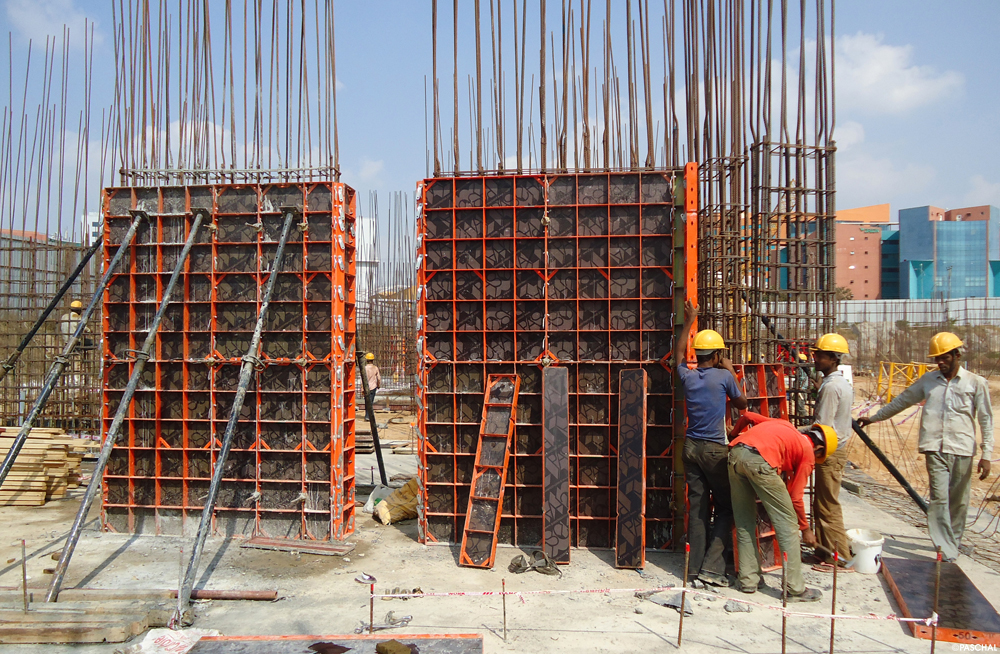

Modular universal formwork on a building site in India.

The Modular universal formwork is preferred for use in formwork for foundations, walls, columns, beams, shafts and pre-cast concrete components. As a result of the comprehensive range of elements, it can be used both as hand-set and large-size formwork. The modular design principle enables simple and quick handling, even by unskilled labour.

Modular column formwork

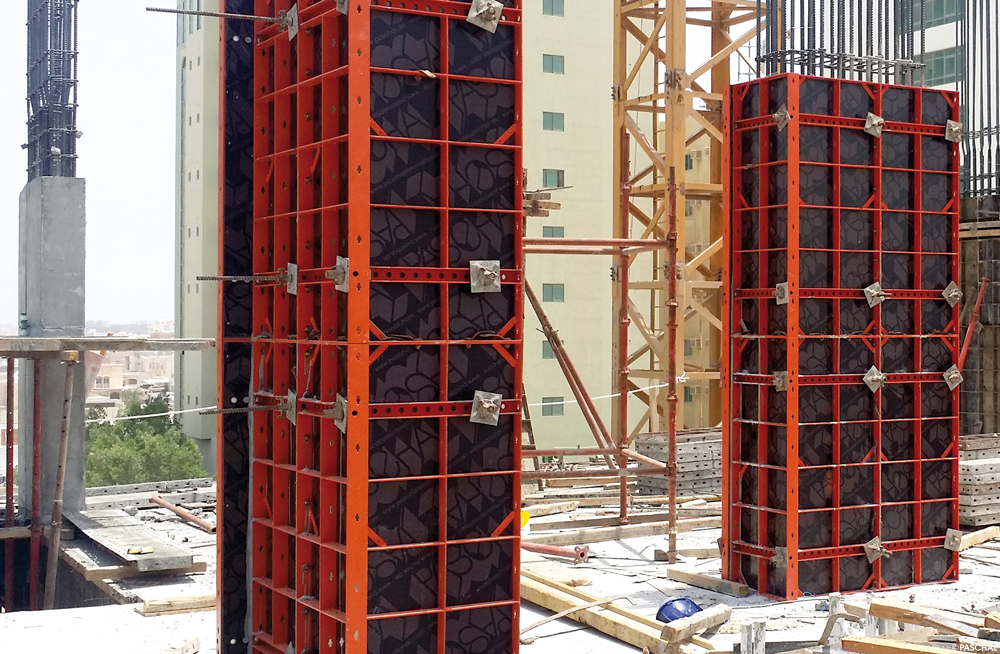

The adjustable Modular column formwork in practical use.

As a practical system expansion of the Modular formwork system, at bC India PASCHAL will be exhibiting the adjustable Modular column formwork with which both square and rectangular reinforced concrete columns with external dimensions from 20 to 50 cm in increments of 5 centimetres can be formed. The simple windmill principle allows you to form a wide variety of different reinforced concrete columns from just a few individual panels of the adjustable Modular column formwork. Depending on availability and space constraints, the formwork systems can be moved completely by using a crane or can be dismantled into individual components and transported, assembled and dismantled manually.

LOGO alu

The LOGO.3 wall formwork system will be displayed in its aluminium version. LOGO alu formwork is light and can be moved by hand, while possessing virtually all characteristics of a large area system. It is suitable for use on building sites where no crane is available.
The largest panel is 90 cm wide and 270 cm high, yet weighs only 59 kg while still offering a form area of 2,43 m². For the entire system, a poured concrete pressure of 60 kN/m² by DIN 18218 is permissible. Handles are included in all panels to simplify transportation and installation.
LOGO alu is also available in a comprehensive panel assortment, all the way down to 5 and 6 cm steel filler pieces and 1-4 cm plastic filler pieces, removing the need for extra on-site solutions, and ensuring that formwork costs remain low whatever the project.

PASCHAL Deck

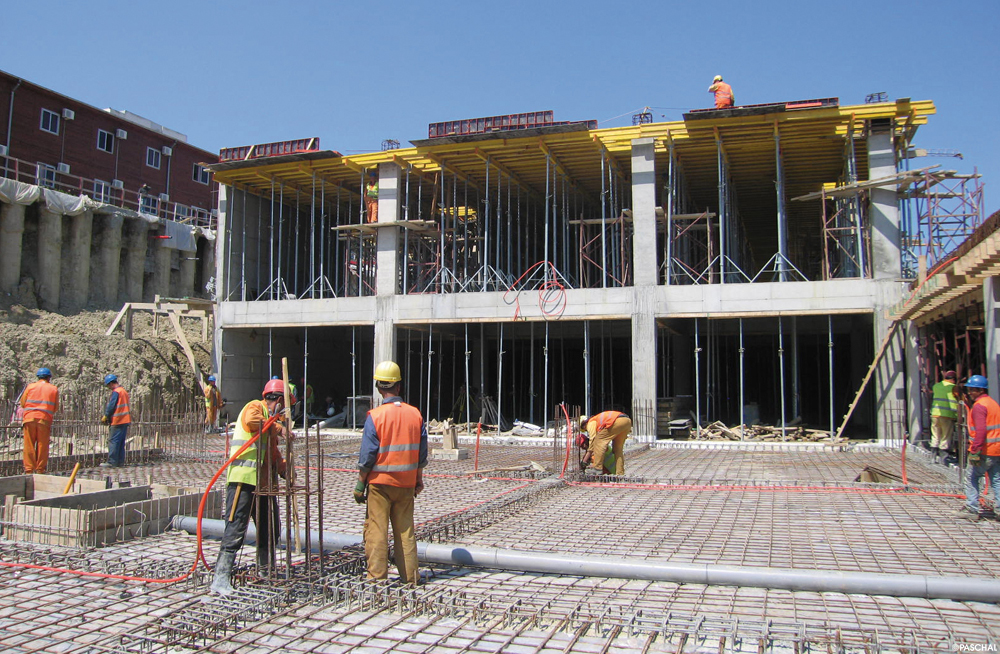

PASCHAL Deck - versatile slab formwork for ceilings in residential and industrial buildings.

PASCHAL Deck is a flexible slab formwork consisting of three main components:

• Plywood
• H 20 girder
• Slab prop

This system is ideal for use with different slab thicknesses, as only the statically necessary parts are used. Loose plywood plates, supported by H 20 girders (cross girders) serve as decking. The same H 20 girders are used as main girders to support the cross girders. The same parts can be used in both directions.
The flexibility of the system, i.e. its ability to adapt to various different room sizes, comes from the overlapping of the H 20 girders. It is of no significance whether the girders are used as main girders or cross girders. Overlapping in any dimension i possible in either direction. Similarly the main girders and cross girders can be turned in the statically required direction for slanting T-walls, wall abutments, bays, circular structures, etc.
